N-skala

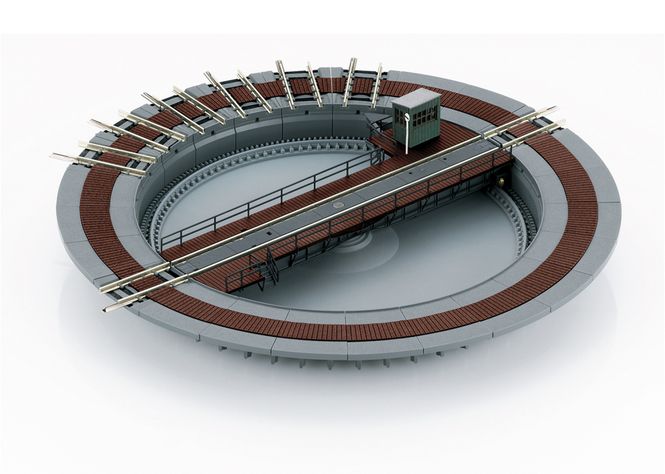

This is a standard design turntable with a 21 meter / 68 foot 3 inch deck length. An example of it is still preserved in Tuttlingen.
The model is designed for sunken installation on a layout baseboard. It has 8 spoke tracks on the outer edge of the turntable pit. It can be expanded to 24 spoke tracks with the 66571 edge segments that can be snapped onto the turntable pit. The turntable has extensive detailing and prototypical paintwork. It is operated by remote control using a controller included with it. It has a powerful electric motor for a drive mechanism. There is automatic shutoff of power to all tracks not lined up and in contact with the turntable deck. The external turntable diameter is 170 mm / 6-11/16". The diameter of the opening required for installation on a baseboard is 145 mm / 5-11/16". The installation depth when the wires are connected directly to the turntable is approximately 30 mm / 1-3/16". When plugs are used with the wires, the depth is approximately 50 mm / 2". The deck length is 132 mm / 5-3/16". This means steam locomotives with a wheelbase including flanges (not "length over the buffers"!) of 130 mm / 5-15/16" can be turned (example: class 44).
N / 1:160
Ringlokstall fra Minitrix

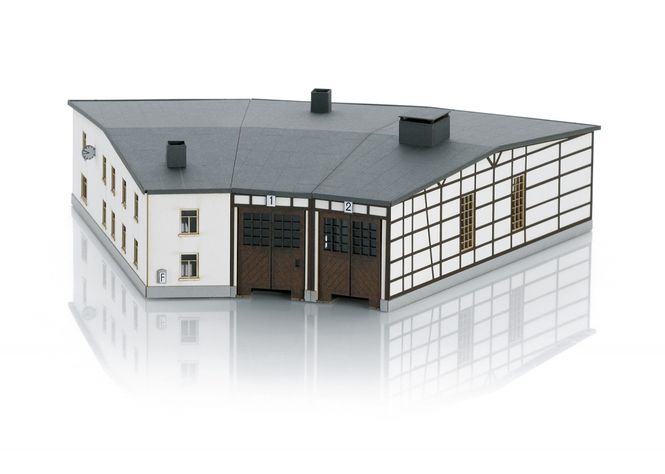

"Rottweil" Roundhouse Locomotive Shed. This is a 3-stall locomotive shed, which can be built on next to it and behind it as desired. The workshop is included for a prototypical structure. The stall doors can be opened and are ready for installation of servomotors (not included with this kit). The center-to-center track spacing will work with the 66570 turntable (15 degree spacing). This kit consists of laser-cut, colored architectural hard cardstock. It has the finest laser-engraved details. Extensive instructions for building the kit are included. Dimensions (L x W x H) for a 3-stall locomotive shed: 175 mm x 227 mm x 52 mm / 6-7/8" x 8-15/16" x 2-1/16" (L= shed length).
Highlights
Various possible structures.
Suitable shelter for steam and diesel locomotives.
Works with the 66570 turntable.
N-Skala
This set consists of 8 track connection edge segments for attaching to the edge of the turntable. The turntable can be expanded to 24 track connections with 2 expansion sets. The color scheme goes with the 66570 turntable.
